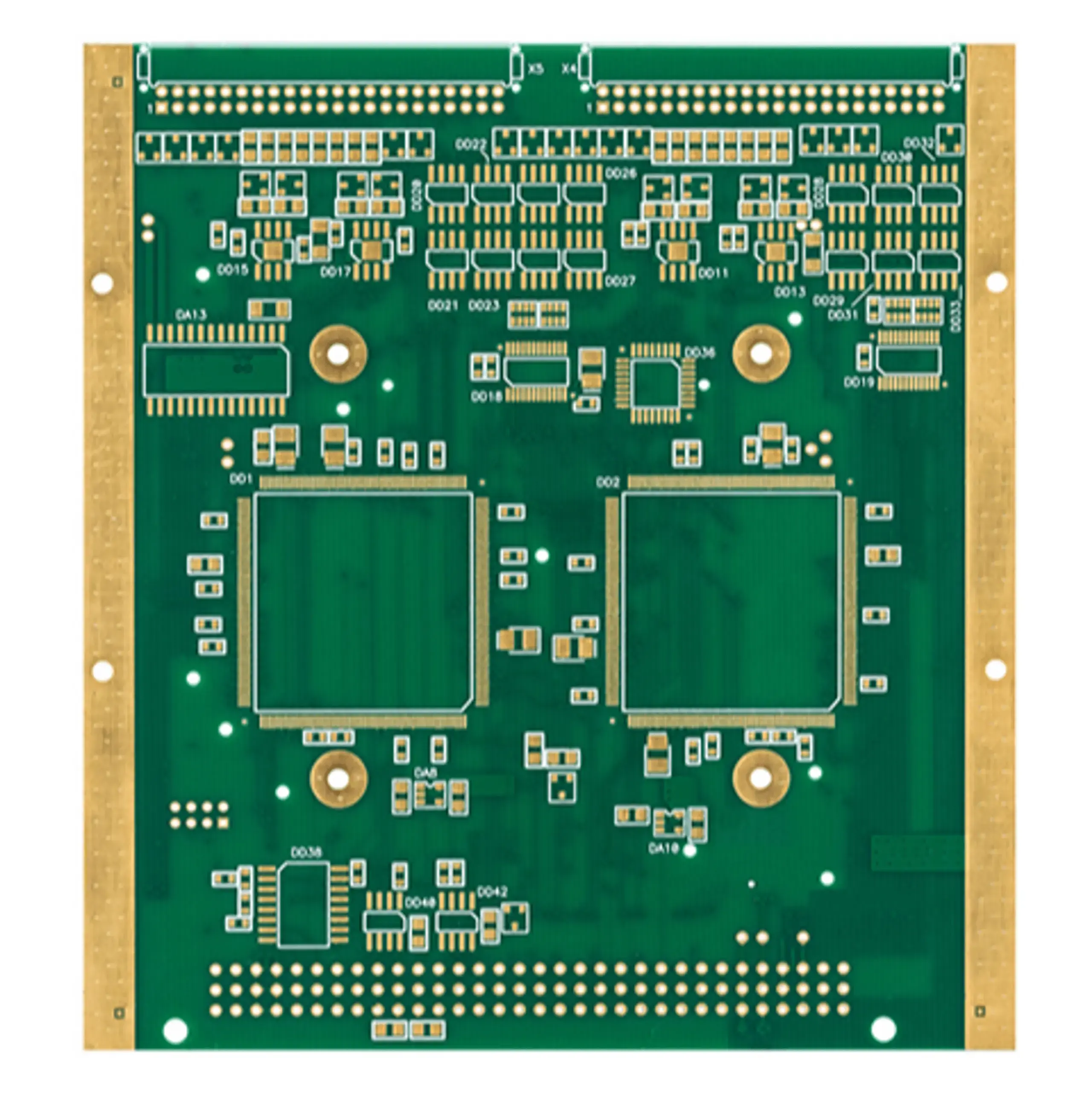

pcb-productcover-2_w2560-min-1
pcb-productcover-3_w2560-min-1

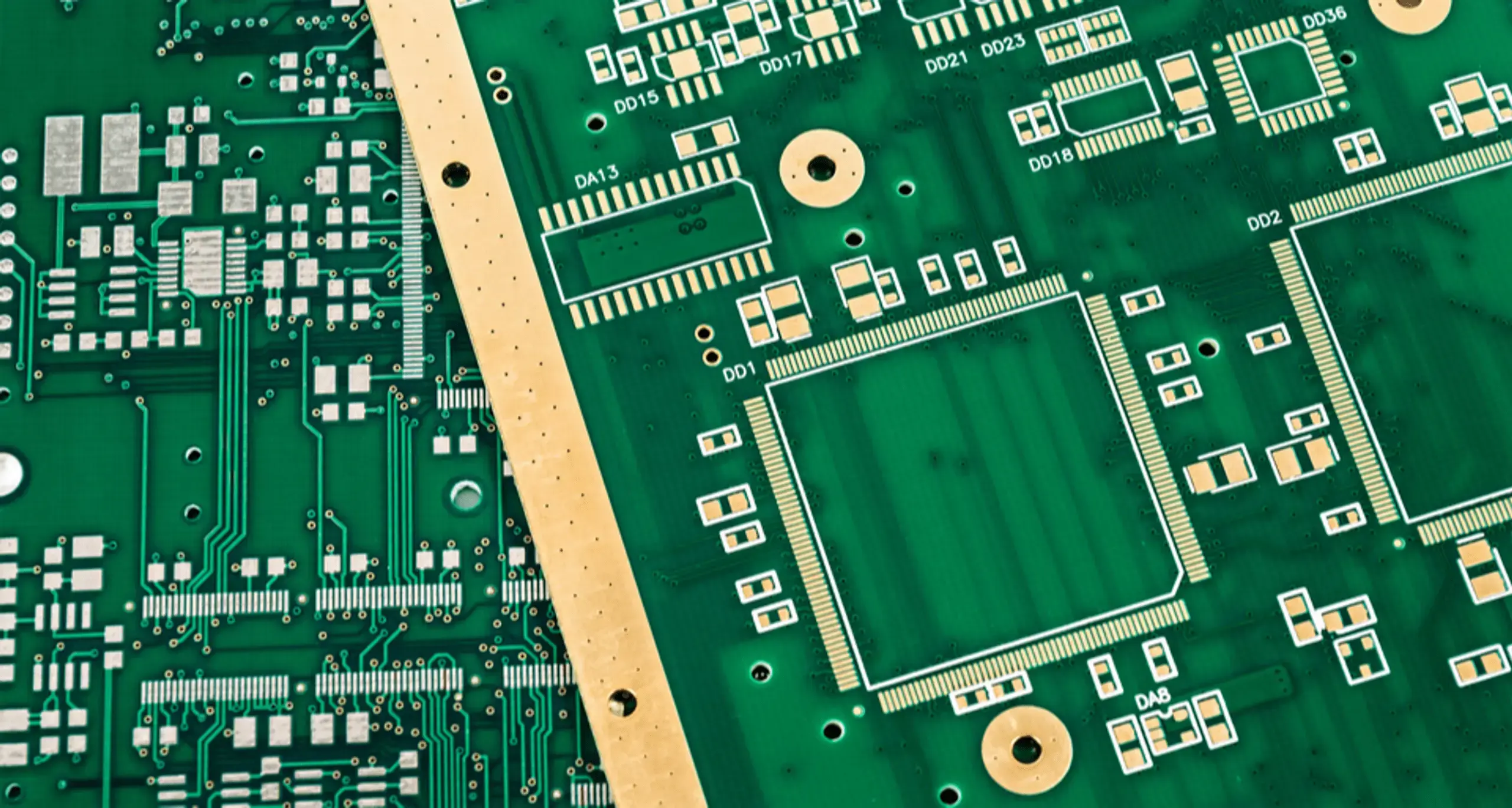

pcb-productcover-4_w2560-min-1

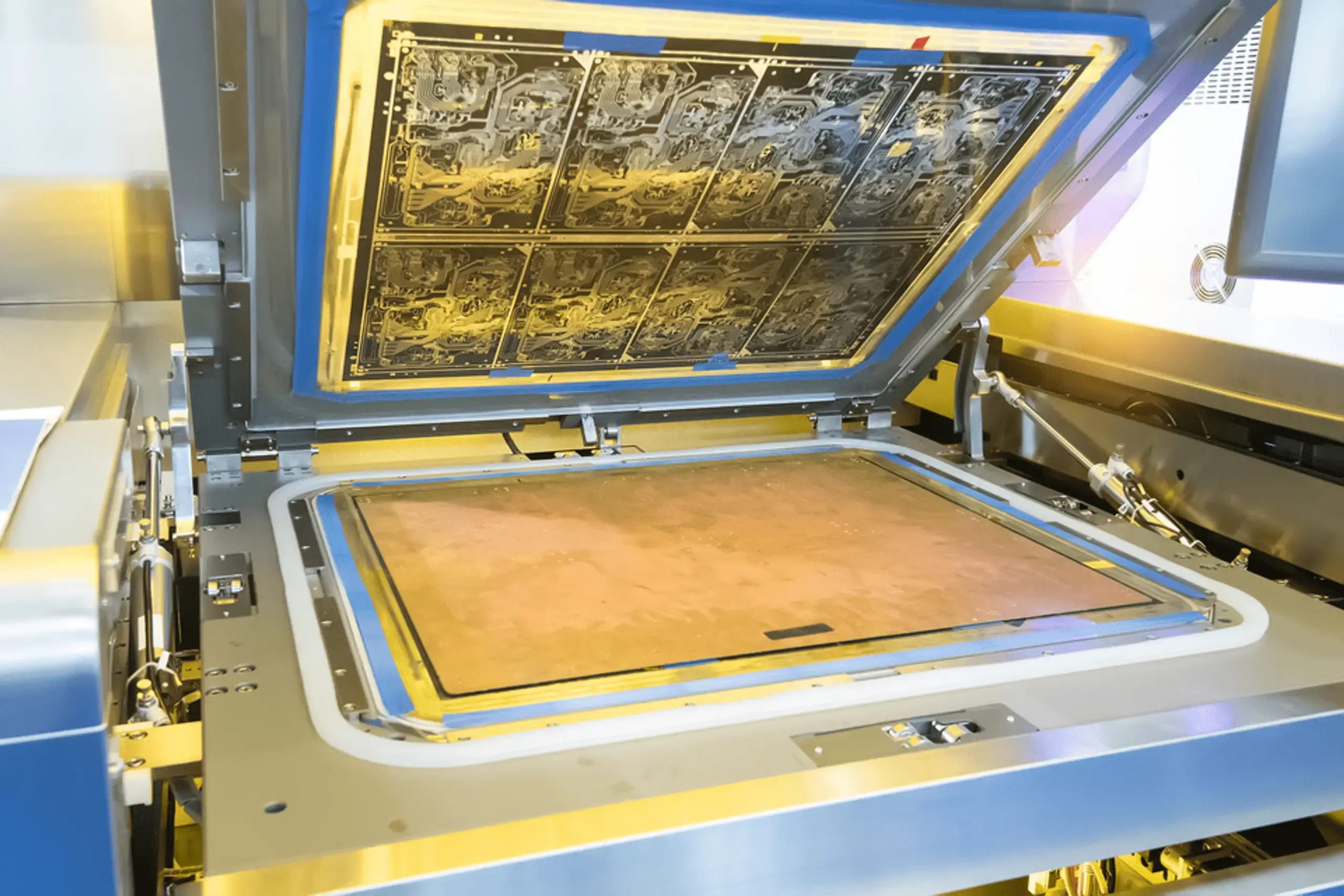

pcb-productcover-5_w2560-min-1

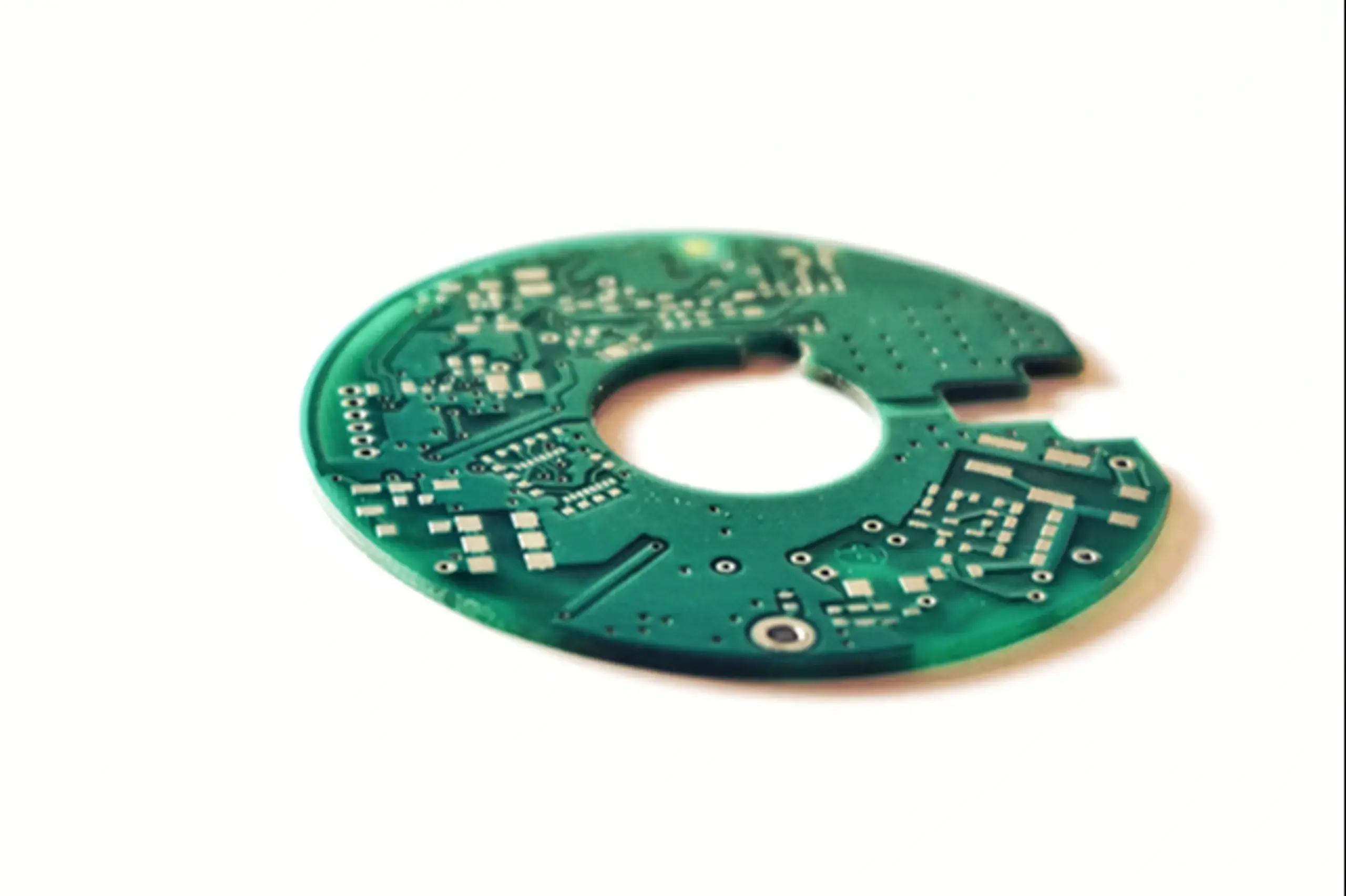

PCB_w2560-min-1

Order your pcb at EMSFACTORY

EMSFACTORY offers you the largest PCB offer on the market, quote and order your PCB from the simplest to the most complex online.

  • SHORT LEAD TIME

manage the production of your projects online

pcb-shortprocess-1
Configure your project online

EMSFACTORY web platform. Online quotation.

pcb-shortprocess-2
Validate your quantities and deadlines with the Price Optimizer

Connected to the largest suppliers. The best price in a few minutes.

pcb-shortprocess-3
Launch and follow the manufacturing process

Order online in one click. Follow the progress step by step with our Customer service.

pcba-shortprocess-4
Receive your order in Express

Track your delivery thanks to the tracking of your package anywhere in the world.

Our key advantages

chiffrage-en-ligne

Online quotation

Get a detailed price for your project in a few minutes based on the time and quantity you choose.
pas-de-frais-doutillage

no tooling costs

EMSFACTORY's technologies eliminate all production tooling.

Create your
project online

Enter the characteristics of your PCB

Dimensions, Nb of layers, th. PCB, finish, th. copper, varnished color, via filled, ...

pcb-onlinesetup-1

Benefit from online advice

Chat with EMS FACTORY team, get explanations on the choices and manufacturing possibilities of your PCB

pcb-onlinesetup-2

Price Optimizer

It is a unique EMS FACTORY tool for cost analysis based on lead time and quantities and taking into account the best offers from our suppliers.

pcb-onlinesetup-3

Online order

Validate and pay your order online, edit a pdf quote, share your cart with your colleagues

pcb-onlinesetup-4

Follow the manufacture and delivery

Stay informed of the progress of your order from your web account and from our team.

pcb-onlinesetup-5

manufacturing

DRC checking of files

All manufacturing constraints are checked one by one

pcb-manufacturing-1

Panel layout

The paneling of your PCBs is carried out according to your instructions entered online or your files

pcb-manufacturing-2

PCB manufacturing

The 30 steps min. manufacturing processes are launched: cutting, drilling, metallization, lamination, exposure, development, etc.

pcb-manufacturing-3

Electrical test

All tracks are electrically tested to verify good conduction and the absence of short circuits

pcb-manufacturing-4

Visual and dimensional control

The quality of varnish finish and marking are checked as well as the dimensions of the PCBs

pcb-manufacturing-5

Manufacturing and compliance report

A report is automatically generated and can be downloaded from your web account containing all the information related to manufacturing.

pcb-manufacturing-6

Packing and shipping

Your order is packaged in an anti-static bag and shipped by express carrier.

pcb-manufacturing-7

PCB specification

PCB
  • image/svg+xml 10x10mm up to 400x400mm
  • image/svg+xml Slice metallization
  • image/svg+xml FR4, CEM3, Roger
  • image/svg+xml Controlled impedances
  • image/svg+xml Green, white, black, red, blue, purple soldermask
  • image/svg+xml Via filled with resin
  • image/svg+xml 1 to 16 layers
  • image/svg+xml IPC-A-600 Class 2 (Class 3 on request)
  • image/svg+xml ENIG (NiAu), HAL Rohs, Sn, Ag
  • image/svg+xml Rigid, SMI aluminium
  • image/svg+xml Flex (without assembly), Rigid-Flex
  • image/svg+xml White, black, yellow, blue silkscreen
  • image/svg+xml On demand stack up
  • image/svg+xml Via blind / buried
  • image/svg+xml Track width 75µm
